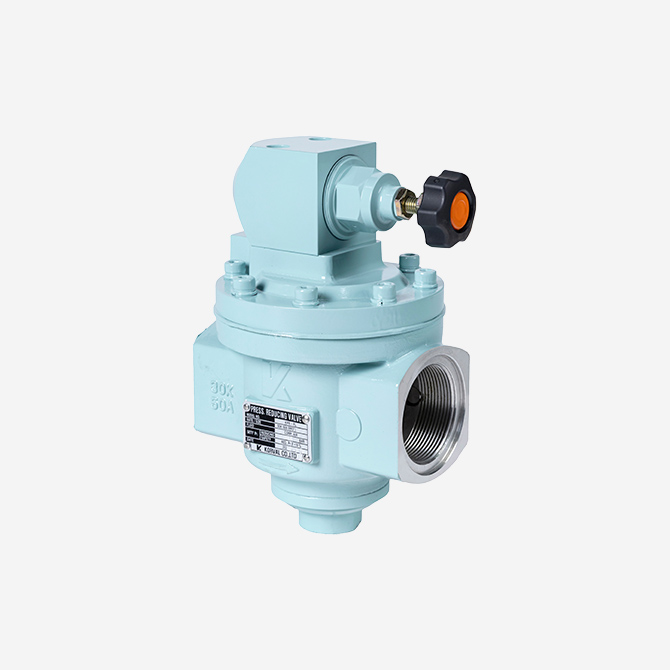

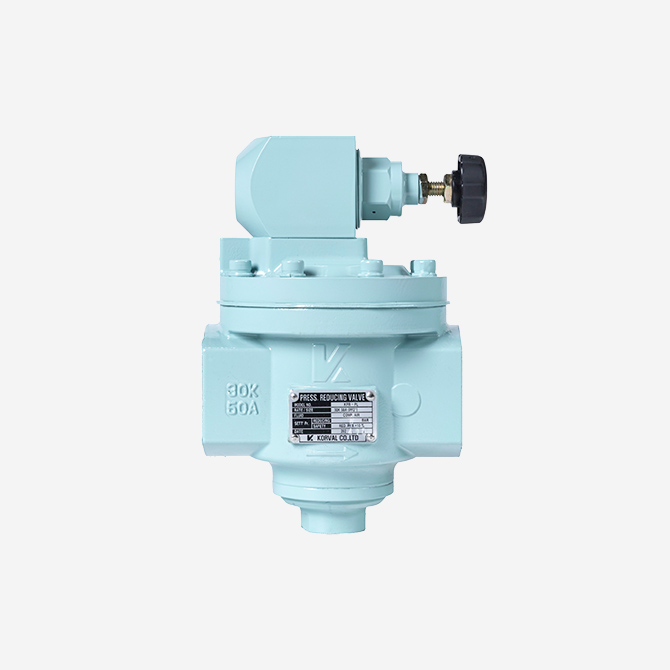

RS Valve
RS Valve
| MODEL | KU370-RS |
|---|---|
| Size | 32A ~ 50A |
| Material | Stainless Steel / Carbon Steel |
| Design Pressure | 1~30bar |
| Hydrostatic Test Pressure | 45bar |
| Setting Range | 0.5~16bar |
| Design Temperature | 0°C to +60°C |
| Media | Compressed Air / N2 |
| End Connection | Flange |
| Function | Reducing / Safety |
| Vibration | Considered |
| Option | Pressure Gauge |
| Application | 4-Stroke Engine |
Introduction
This is a composite valve device that integrates the functions of a pressure reducing valve and a safety valve into a single system, designed for the stable operation of fluid systems and equipment protection.
The pressure reducing function stabilizes system pressure, while the safety valve function safely releases overpressure to ensure system safety.
By integrating these two core functions into a single device, the RS Valve improves equipment efficiency, minimizes installation space, and facilitates maintenance.
