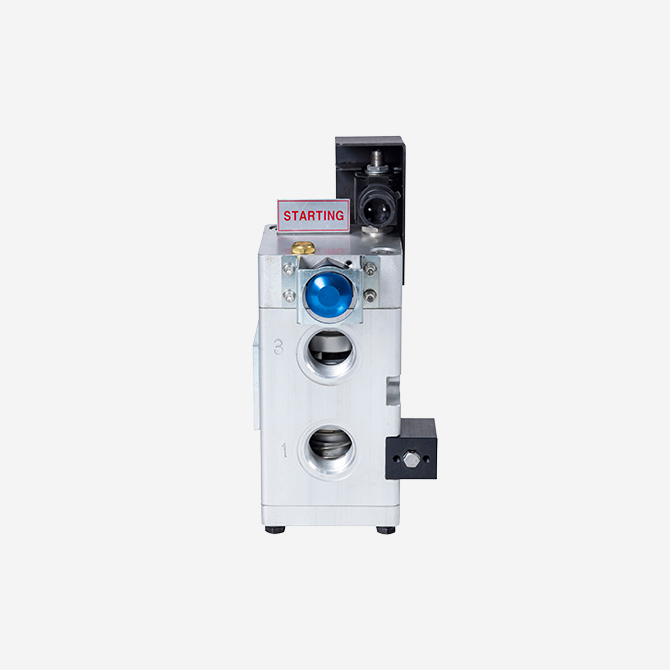

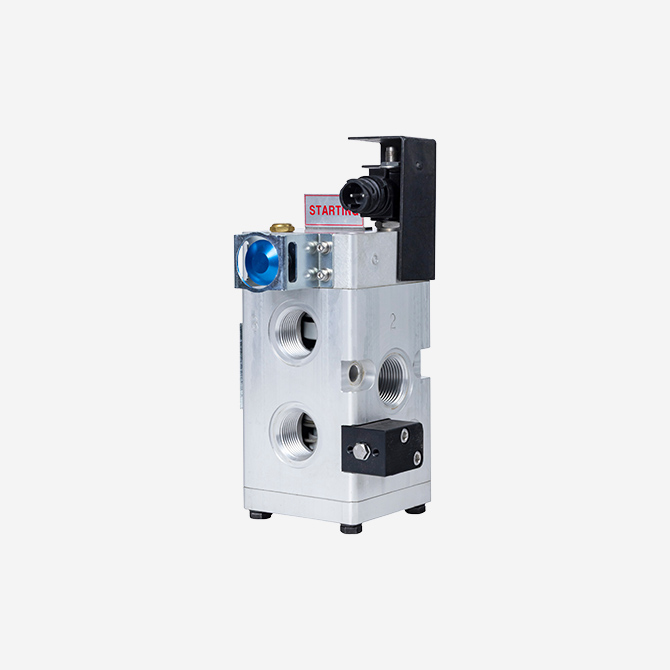

3/2way Solenoid Valve
3/2way Solenoid Valve
| MODEL | KF410 |
|---|---|
| Size | PF 1″ |
| Material | Aluminium |
| Nominal Working Pressure | 6 ~ 45bar |
| Hydrostatic Test Pressure | 67.5bar |
| Design Temperature | -20°C to +70°C |
| Media | Compressed Air |
| Supply Voltage | DC24V(±10%) |
| Current Consumption | 20 Watt |
| Protection | IP65 - IEC 60529 |
| Thermal Class | F - IEC 60085 |
| Vibration | Considered |
| Application | 4-Stroke Engine |
Introduction
An electrically actuated valve that automatically controls fluid flow using electrical signals.
The solenoid coil operates via electrical signals to open and close the valve, enabling fast and precise control of fluid supply, shut-off, and flow.
