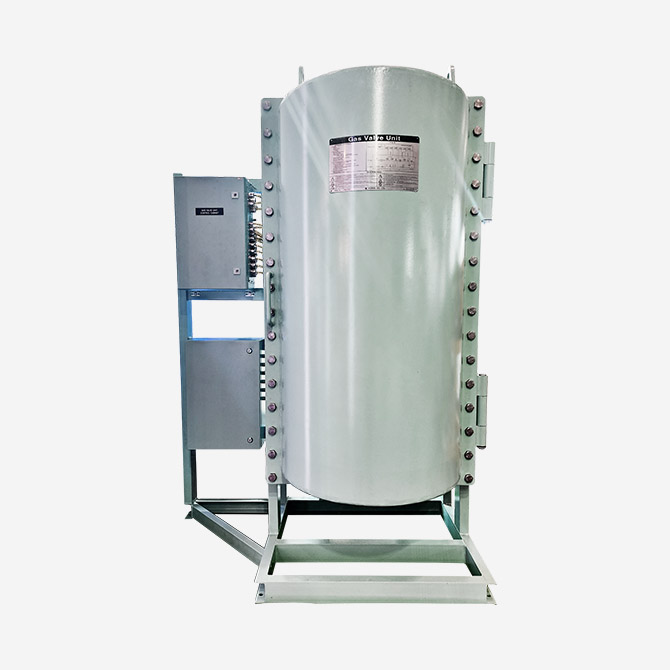

Gas Valve Unit (Enclosed Type)
Enclosed Type
| MODEL | KU520-ED |
|---|---|
| Size | DN50~DN150 |
| Material | Stainless Steel |
| Nominal Working Pressure | 1~9bar |
| Design Pressure | 10 bar |
| Hydrostatic Test Pressure | 15 bar |
| Design Temperature | -50°C to +60°C |
| Media for the Engine | Methane |
| Media for Purge | Nitrogen |
| Design Flow | 1355m3/h |
| Vibration | Considered |
| Filter | 2 µm |
| Application | Dual Fuel 4-Stroke Engine / Boiler / GCU |
Introduction
A key unit designed to control gas supply and ensure safe shut-off in gas fuel systems.
It integrates gas pressure regulation, flow control, and emergency shut-off functions to support stable operation of engine and gas fuel systems.

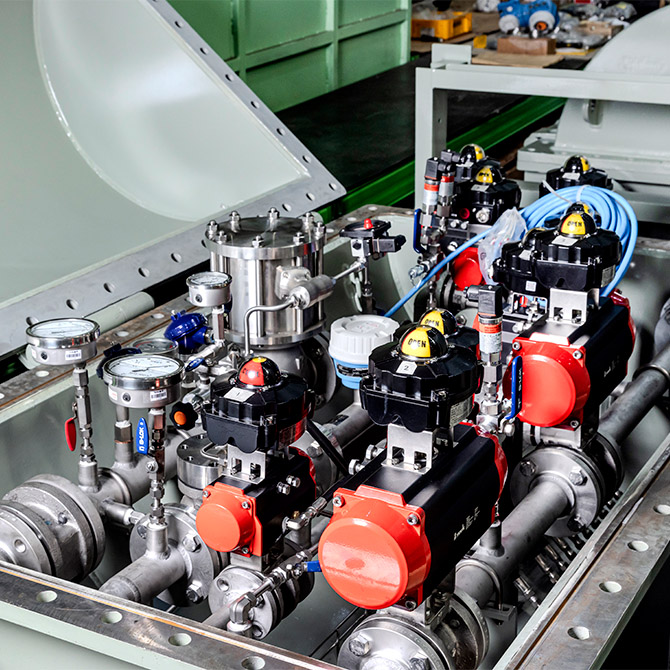

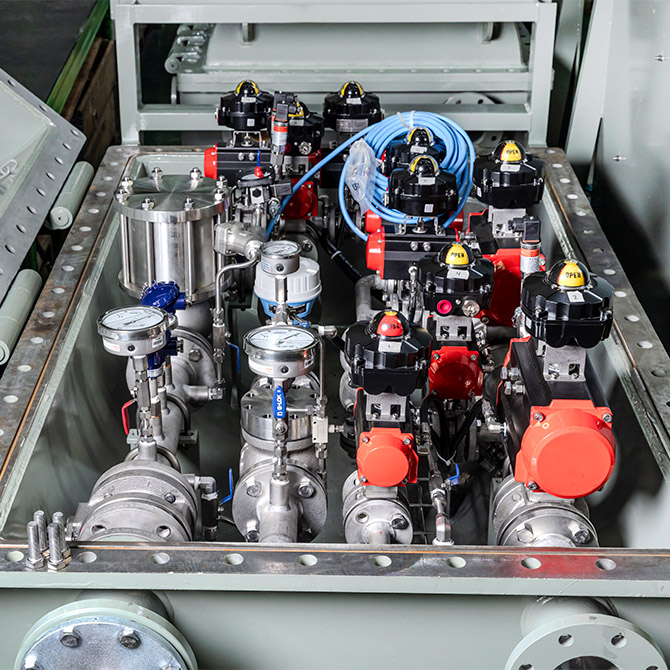

The GVU consists of multiple safety devices and control valves, enabling rapid shut-off of gas supply in case of system abnormalities or emergencies, thereby protecting equipment and operations. It also ensures efficient gas fuel supply through stable pressure maintenance and precise flow control.
This product is applied in LNG-fueled vessels, power generation facilities, industrial gas systems, and various gas supply infrastructures, delivering a highly reliable gas control solution.
