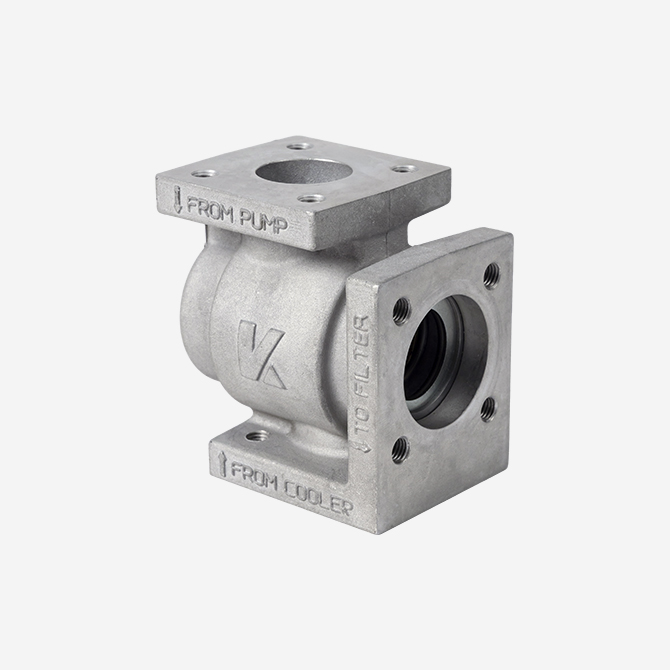

Thermostatic Valve (Square Type)
Square Type
| MODEL | KA330-SQ |
|---|---|
| Size | 20A ~ 150A |
| Material | FCD400 / FCD450 / Aluminium |
| Nominal Working Pressure | 7bar |
| Valve Type | 3way |
| Actuator Type | Thermostatic Element |
| Actuator Operation | 7~10bar |
| Design Temperature | 0°C to ~ +120°C |
| Temperature Range | 32°C to ~ +91°C |
| Fluid Direction | Mixing / Dividing |
| Media | Water, Oil |
| End Connection | Flange |
| Vibration | Considered |
| Option | Manual Override |
| Application | Engine Room of Ship / Oil & Gas / Petrochemical / Chemical Industry |
Introduction
A valve designed to automatically sense and control fluid temperature in order to maintain a constant system temperature.
An internal sensing device operates in response to temperature changes to regulate fluid flow, thereby supporting stable temperature control and efficient system operation.
This valve prevents equipment overheating through precise temperature control and improves system efficiency and safety.
Its reliable structure and durability also ensure stable performance in a variety of industrial environments.
The Thermostatic Valve is used in marine engine cooling systems, industrial cooling and heating systems, heat exchangers, and various temperature control installations.
