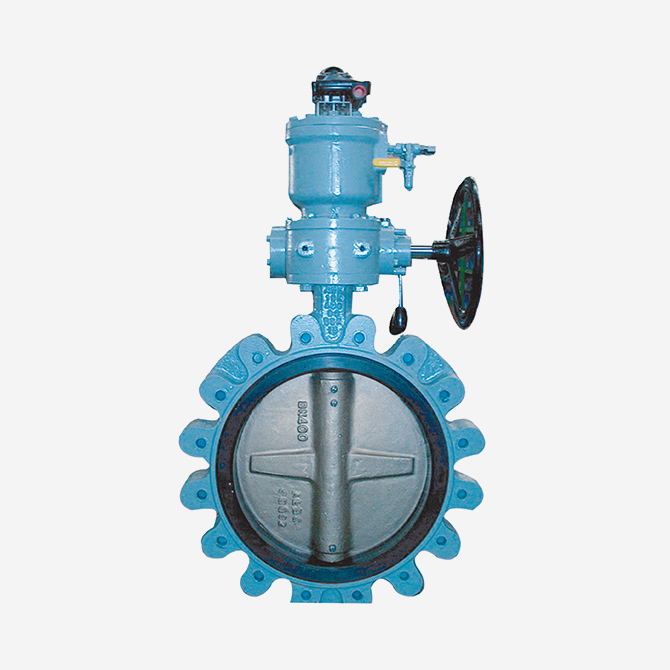

Butterfly Valve
Hydraulic Cylinder Type
| MODEL | KM200-AHC |
|---|---|
| Service | NG, N2, H2, O2, CO2, Water, Steam |
| Temperature Range | -20 °C ~ 250 °C |
| Pressure Rating | Class 150 ~ 2500 |
| Size Range | 3″ ~ 36″ |
| Valve Design | Double Offset / Triple Offset |
| Material | Carbon Steel, Stainless Steel |
| Seat Material | Copper or Stainless Steel |
| Operation | Hydraulic Cylinder |
| End Connection | Flanged / Butt Weld |
| Feature | Bi-Directional Flow / Fire-Safe Design / Anti-Static / Low Emission Packing |
| Leakage Class | API598 / ASME B16.34 |
| Application | Oil & Gas / Petrochemical / Chemical / Process Industry |
Introduction
A compact and lightweight design minimizes installation space, while a 90-degree quarter-turn mechanism enables rapid opening and closing.
Its simple structure allows easy and cost-effective maintenance, and low-torque operation enables the use of compact actuators, delivering high efficiency across various industrial fluid control applications.
