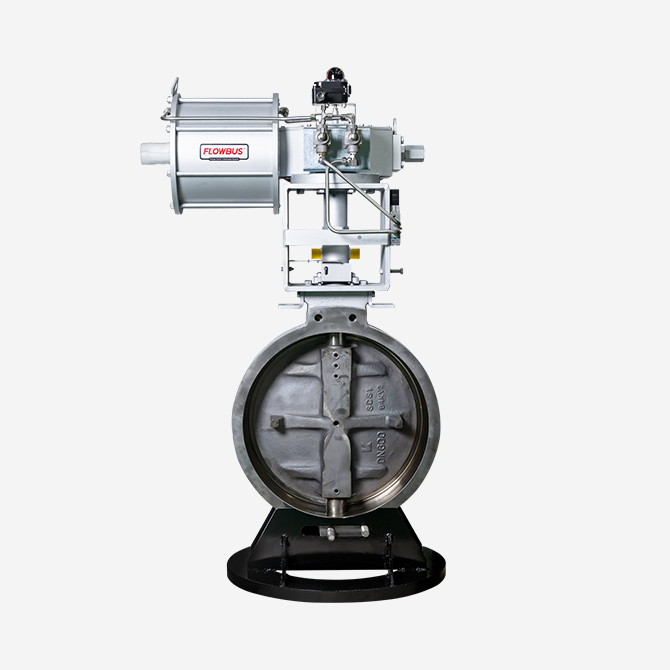

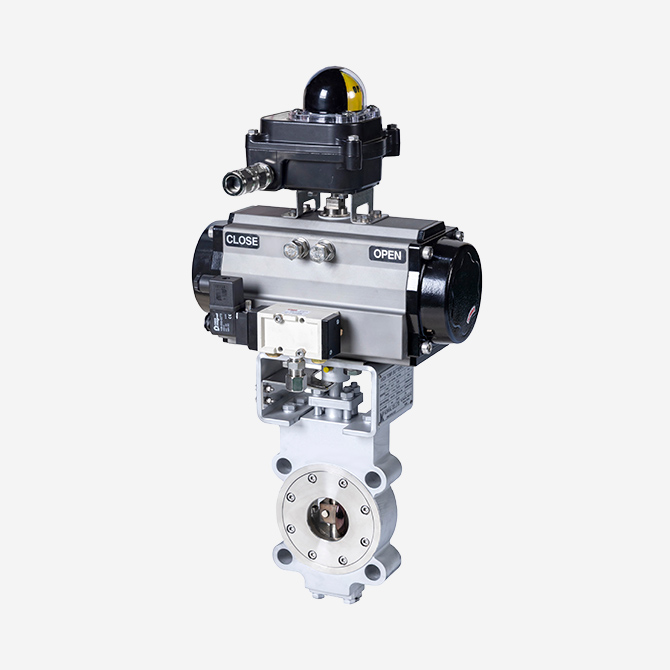

High Temperature Butterfly Valve
Pneumatic Cylinder Type
| MODEL | KC203-APC |
|---|---|
| Service | Exhaust Gas |
| Temperature Range | 0 °C ~ 550 °C |
| Pressure Rating | Class 150 |
| Size Range | 2-1/2″ ~ 64″ |
| Valve Design | Triple Offset |
| Material | Carbon Steel, Stainless Steel |
| Seat Material | Stainless Steel |
| Operation | Pneumatic Cylinder |
| End Connection | Flanged |
| Feature | Bi-Directional Flow / Fire-Safe Design / Anti-Static / Low Emission Packing |
| Leakage Class | API598 / ASME B16.34 |
| Application | Oil & Gas / Petrochemical / Chemical / Process Industry / Marine Engine |
Introduction
A specialized 90-degree quarter-turn industrial valve designed for extreme temperature conditions, typically capable of handling exhaust gases in a temperature range from -320°F to 1,200°F (approximately -195°C to 650°C), with certain models able to withstand up to 1,000°C.
It features a robust structure with metal seats and special alloy materials, and many designs incorporate a triple-offset configuration to ensure tight sealing.
