Control Valve

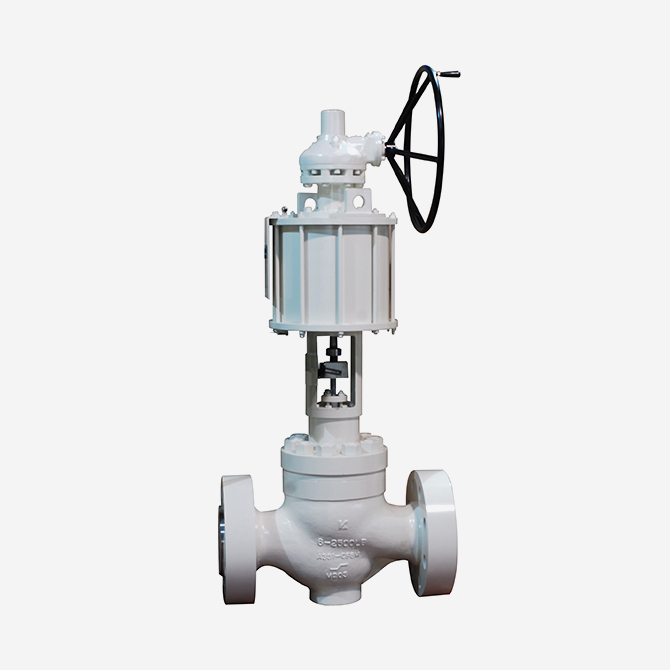

Pneumatic Cylinder Type
| MODEL | KC100-APC |
|---|---|
| Service | NG, N2, H2, O2, CO2, Water, Steam, Oil |
| Temperature Range | -20 °C ~ 250 °C |
| Pressure Rating | Class 150 ~ 2500 |
| Size Range | 1/2″ ~ 24″ |
| Trim Type | P-Port, Cage Window, Multi Hole(1~3 Stage), Disc Stack |
| Flow Characteristic | Linear / Equal Percentage / Modified Linear |
| Material | Carbon Steel, Stainless Steel |
| Seat Material | Metal or Soft |
| Operation | Pneumatic Cylinder |
| End Connection | Flanged / Butt Weld |
| Acting | Single / Double / Spring with Double |
| Fail Position | Fail Open / Fail Close / Fail Last |
| Leakage Class | ANSI FCI S70-2 Class I ~ VI |
| Application | Oil & Gas / Petrochemical / Chemical / Process Industry |
Introduction
A high-performance control valve designed for precise flow and pressure regulation.
Built on superior durability and reliability, it delivers stable control performance across a wide range of operating conditions.
