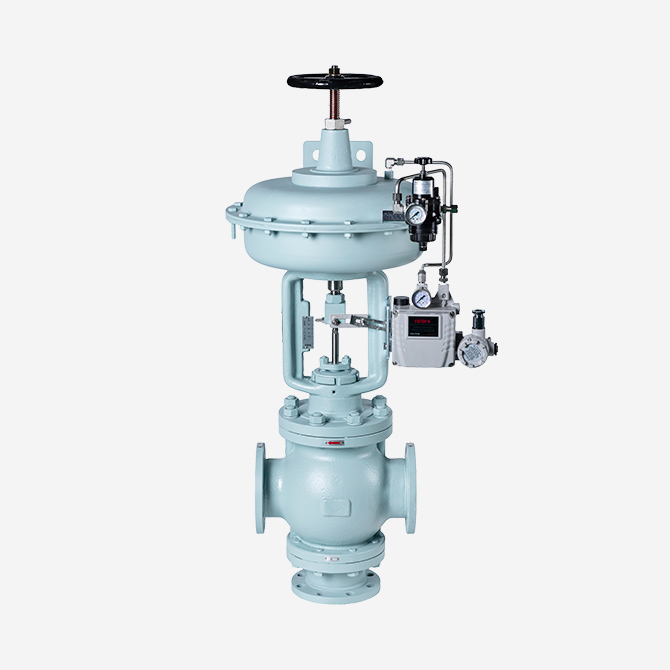

3way Control Valve
Pneumatic Diaphragm Type
| MODEL | KC120-APD |
|---|---|
| Service | Steam, Water, Oil |
| Temperature Range | -20 °C ~ 200 °C |
| Pressure Rating | Class 150 |
| Size Range | 1″ ~ 8″ |
| Operation Type | Mixing / Dividing |
| Material | FCD, Carbon Steel |
| Seat Material | Metal |
| Operation | Pneumatic Diaphragm |
| End Connection | Flanged |
| Leakage Class | ANSI FCI S70-2 Class IV |
| Application | Oil & Gas / Petrochemical / Chemical / Process Industry |
Introduction
Mix two incoming fluids into one line to control precise temperature and flow rate.
Alternatively, it is a control valve that distributes the flow of fluid into two pipes to perform process switching and flow rate control.
Its optimized internal flow path design ensures uniform mixing performance and supports stable operation across power generation, HVAC, and industrial gas applications.
